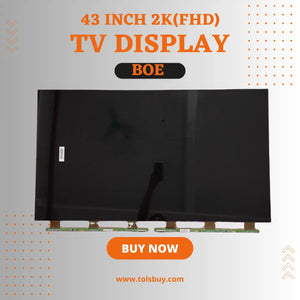

BOE 43-Inch LED TV Panel 2k (FHD) | FOR COMMERCIAL USE
General Specifications
Brand & Model – BOE HV430FHB-F90
Panel Type – TFT-LCD
Size – 43 inches
Resolution – 1920 × 1080 pixels (Full HD)
Aspect Ratio – 16:9
Brightness (Typical) – 250-300 cd/m²
Contrast Ratio – 1200:1 - 4000:1 (Typical/Maximum, Dynamic)
Response Time – 8ms (Typical)
Viewing Angle – 178°(H) / 178°(V)
Display Features
Backlight Type – Direct LED (DLED)
Backlight Voltage – 60-68V, 600mA
Color Depth – 8-bit, 16.7M Colors
Refresh Rate – 60Hz
Panel Surface – Anti-Glare (Haze 1%)
Electrical & Mechanical
Panel Thickness – ≤ 10 mm
Power Consumption – Low power consumption, energy-efficient
Interface – LVDS (2-channel, 8-bit)
Application & Usage
Ideal for LED TVs, Digital Signage, and Smart Display Solutions
Compatible with multiple TV motherboard brands
Designed for 24/7 operation with excellent durability
This is a high-quality A-grade panel from BOE, known for reliable performance, vibrant display, and wide viewing angles. Let me know if you need further modifications.
